RESARO, A MOISTURE-PROOF, ENERGY EFFECTIVE, ENERGY SMART, SUPER INSULATED RESIDENCE

MEET, WITH GOOD MARGINAL, THE DEMANDS FOR PASSIVE HOUSE's IMPENETRABILITY AGAINST DRAUGHT AND ENERGY CONSUMPTION

CIRCULATED HEATING AND VENTILATION AIR

FILTERED CLEAN INDOOR AIR ALLERGIES FRIENDLY

SOFT UNDER FLOOR HEATING IN ALL FLOORS

SMALL HOUSES, OFFICES, DAY CARE CENTERS, NURSERY SCHOOLS AND APARTMENT HOUSES

IT IS NOT MORE EXPENSIVE TO BUILD AN ARCHITECTURAL DRAWN VILLA, RESARO, THAN TO ERECT A CATALOG HOUSE.

BUT YOU WILL GET THE SUPERIOR COMFORT AND QUALITY OF A STONE HOUSE



REFERENCE VILLAS WITH PHOTOS AND PHOTO SLIDESHOWS




If you want a house with.......

A low temperature system with "soft" under floor heating, initially for the ground floor, or for both floors.

A good indoor climate with the supply air and the outdoor air for ventilation filtered and cleaned.

With a simple possibility for cooling of the top floor on hot summer's day, and thus the rest of the house.

No risk of mold from moisture.

A simplified heat and ventilation installation. Simplified electric wiring and piping for water, as well as sewage.

Unique accessibility for all installations in the future.

Movable electrical sockets along the outer walls.

Lower housing costs, with
Lower cost for insurance and financing owing to
A reliable and environmental construction (less risk of damages from water and moisture, etc.)

Great flexibility, with possibility to influence the planning at a late time.

....................... in that case we suggest You to spend some minutes for the The RESARO-system page

and also read
The Information about the RESARO system for small houses(text appendix)

Enjoy a low-energy housing with soft warm floors in winter.

Enjoy a liveable climate indoors when the temperature stays around 35 degrees in summer.

Feel how your chest expands when you come home.



THE RESARO FLOOR ELEMENT

A concrete element of a structural framework, with a patented web, for casting of chords and slab in one single operation.

Plenty of space for ducts and piping under the floor and through the beams, without cutting of holes.

Extended spans, eliminating normally the need for a load bearing interior wall.



THE TECHNOLOGY PAGE




Air inlet behind skirtings

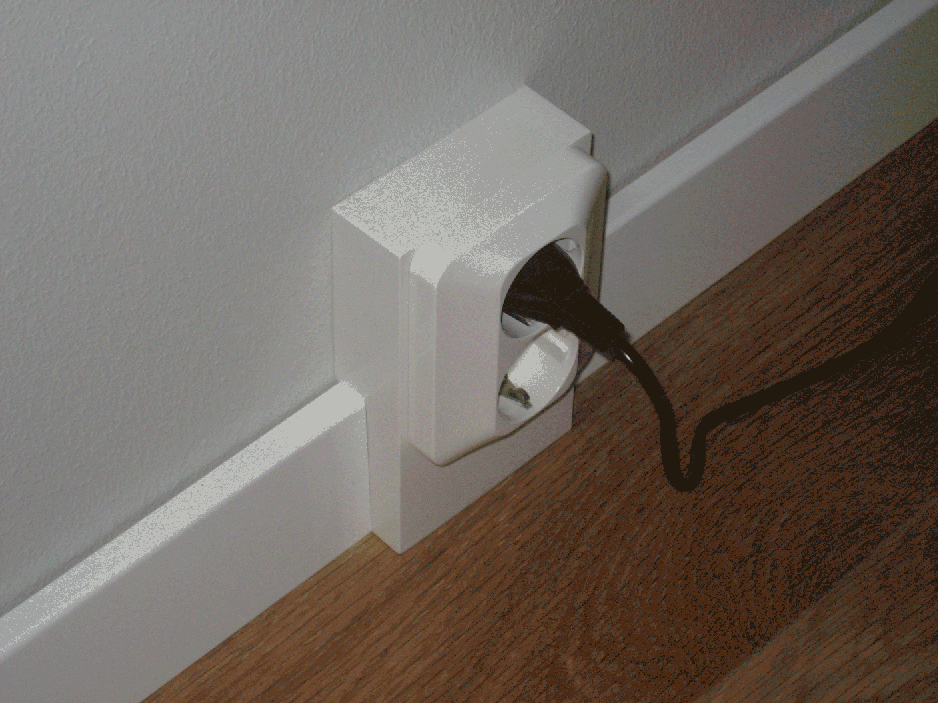

Movable sockets

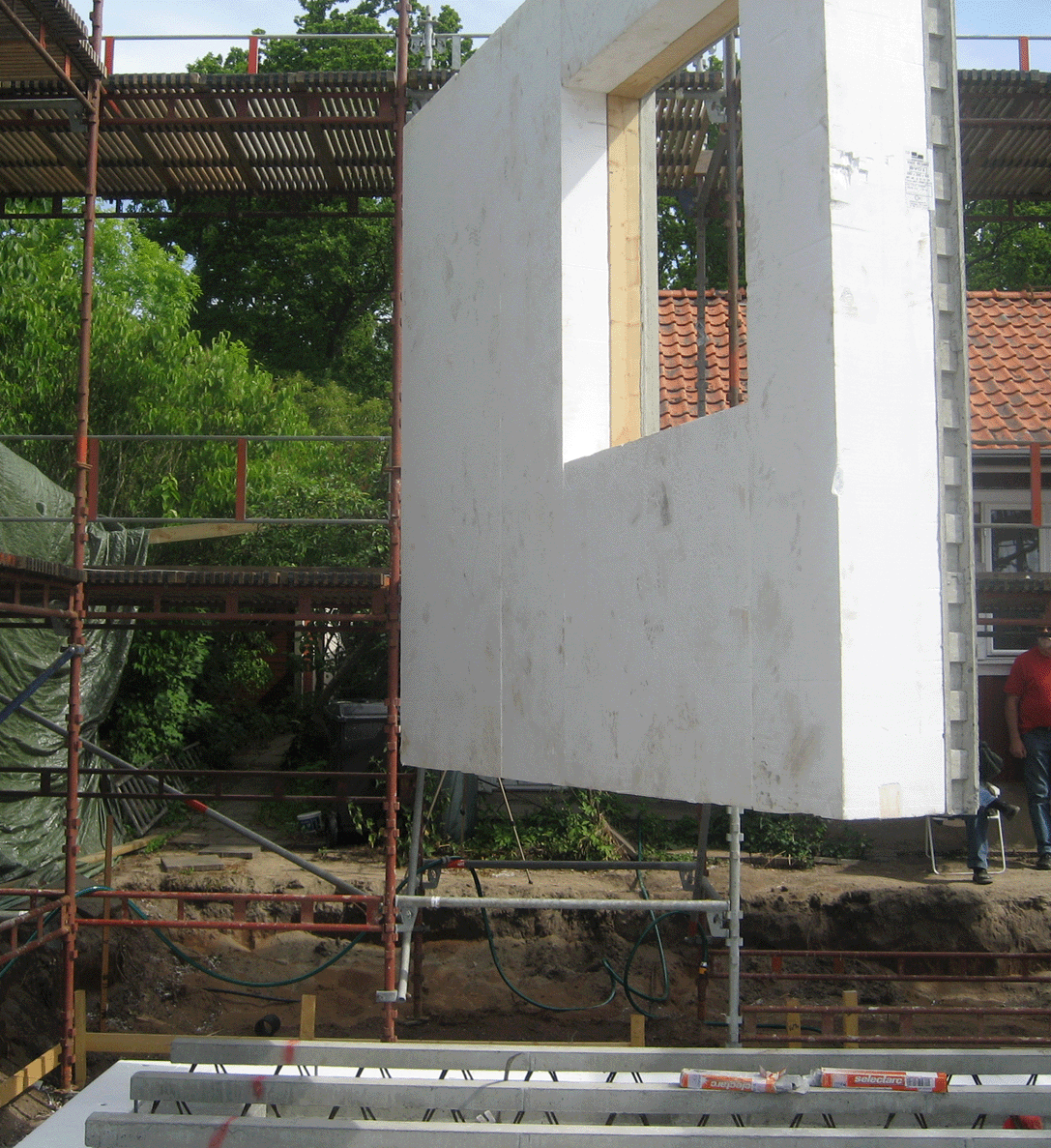

THE RESARO WALL ELEMENT

A new joining method for precast building elements, course cast walls, together with thin-plate floors or suspended structural floors.

Overlaying wall elements loads the lower supporting wall element centrically and vertically.

The design eliminates the need for vertical T-beams in the load-supporting plate of the wall.

Thermal bridges are entirely eliminated.

A four-storied house can be erected with a just 100 mm thick concrete slab.

Gives the opportunity to cast with more simple casting methods and saves reinforcement.

Resaro super insulated outer wall is 400 mm thick. Same thickness, (300 mm), on the insulation from ground to roof. Also at the support zoons of floor element.

U-value less than 0,1 W/kvm degree. Plastered surface.



Please mark the mirror image in the concrete wall surface

- Now Resaro delivers surfaces that no other can do.

THE TECHNOLOGY PAGE, THE RESARO WALL

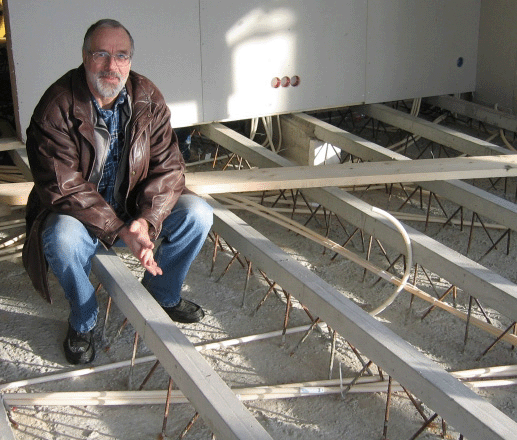

Civ. Ing. George Wegler

The creator of the Resaro systems

Picture from the Tyreso villa.


RESARO WARM FOUNDATION, ALSO FOR WOODEN HOUSES

With the Resaro element in the foundation instead of a cast slab on ground, you will get the most of Resaro's advantages in a wooden house.

This also is valid for mass produced houses being erected in blocks.

Bottom element during assembling.

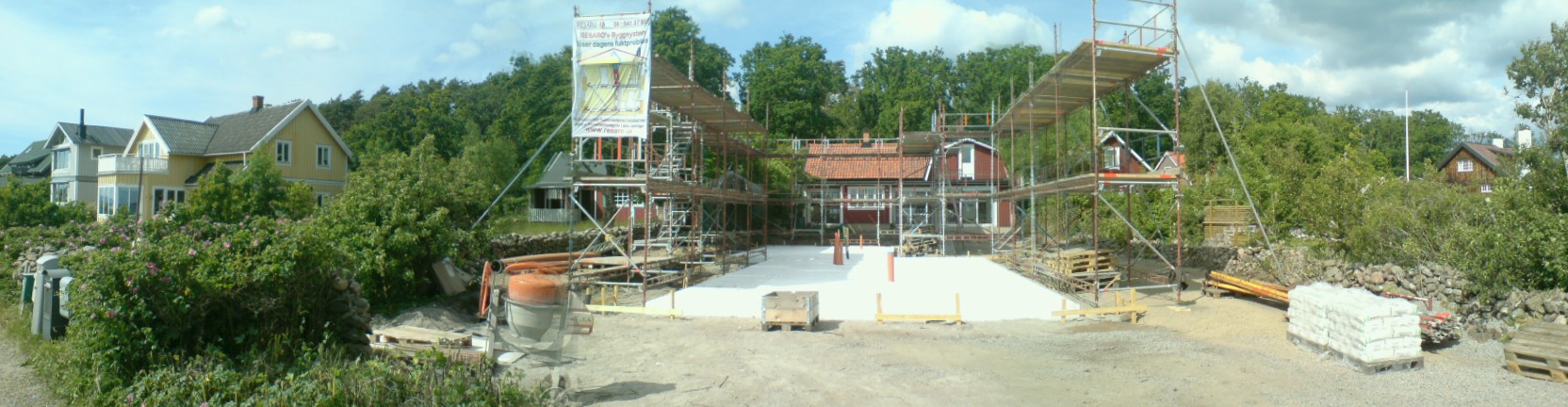

The bottom floor ready assembled.

More photos, please look at the Tyreso villa.

MANY RESARO VILLAS ARE COMPLETED BY THE OWNERS "SELF BUILDERS" USING LOCAL CRAFTSMAN AND OWN WORK OF VARIOUS QUANTITY.



YOU BUY DIRECTLY FROM THE FACTORY.
RESARO MAKE DRAWINGS FOR FOUNDATION, INSTALLATION WORK AND CONSTRUCTION DRAWINGS FOR MANUFACTURING.
