Buildings

Österåker





Small house, 2 x 74 square m.

Prefabricated Resaro Concrete Elements in the bottom floor.

The drawings are made by Resaro AB.
The construction as well as the architect drawings. => That has kept the costs at a very low level.

Two floors with Resaro's structural concrete elements gives under floor heating in both floors.

The walls made in Resaro's design, with the patent applied toothed joining method. (No cold bridges).

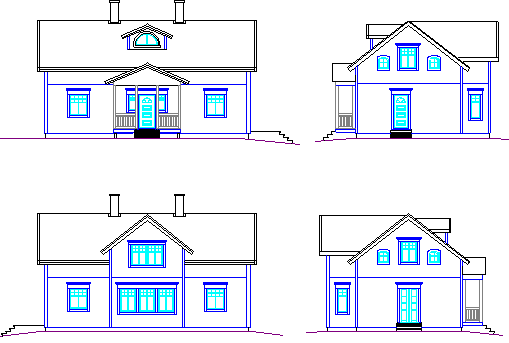

A villa with a classical exterior.

Measures in the inside 12.00 x 5.95 m and standard performance of every floor element, gives optimum conditions for prefab manufacturing and has cut down the costs to a minimum level.




The same Villa in two-floors performance. Build entirely in concrete.

Standing alone villa, 2 x 74 square m.

The entire house built with Resaro Concrete Elements. Dynamic air intake for ventilation is projected.

The drawings are made by Resaro AB.
The construction as well as the architect drawings. => That keeps the costs at a very low level.

Two floors with Resaro's structural concrete elements gives under floor heating in both floors.

The walls made in Resaro's design, with the patent applied toothed joining method. (No cold bridges).

Full level everywhere in the entire building. Bottom floor 2,65 m, Upper floor 2,4 m.

A villa with a classical exterior.

Measures in the inside 12,0 x 6,0 m and standard performance of every floor element, gives optimum conditions for prefab manufacturing and has cut down the costs to a minimum level.

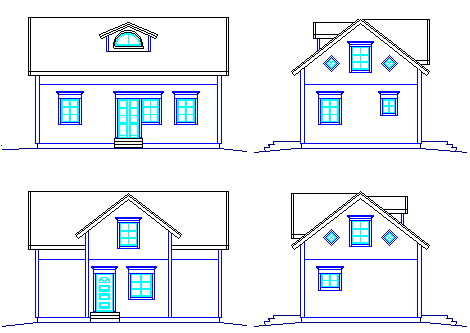

The Serenity Cottage gives permanent living conditions in the country place or a cheep quality house when rebuilding war-ravaged areas.

One and a half-plans villa of 2 x 57,1 square m. 5 - 6 rooms and kitchen.

Prefabricated Resaro Concrete Elements in the bottom floor.



Two floors with Resaro's structural concrete elements gives under floor heating in both floors.

The walls made in Resaro's design, with the patent applied toothed joining method. (No cold bridges).

The drawings are made by Resaro AB=> That keeps the costs at a very low level.

Measures in the inside 9,60 x 5.95 m and standard performance of every floor element, gives optimum conditions for prefab manufacturing and has cut down the costs to a minimum level. Optimum!


The first Resaro building project in Norway: Villa Resell



A three floor villa, about 150 square m, with a basement fitted to live in, and two more floors.

The entire house is built with Resaro Concrete Elements. The roof is also made in concrete elements (solid).

Drawn by Architect Resell Arcidéco A/S in cooperation with Resaro AB. Resaro has drawn up the construction and ventilation drawings.

Three floors with Resaro's structural concrete elements gives under floor heating in all floors.

Bygg-Element Stjørdal A/S has manufactured the Resaro Concrete Elements for the entire villa.

They have investigated in new hanging moulds for casting of the entire structural floor element, both chords and slab, in one single working moment.

The walls are made in Resaro's design, with the patented toothed joining method. (No cold bridges through the heat insulation). A concrete slab facing inwards, furnished with cast in heat insulation with plaster and wood paneling outside.

Full level everywhere in the entire building.

Also for this special house the costs become reasonable when using the Resaro Energy System.

More photos from the building site RESELL PHOTOS

Big photos of the villa VILLA RESELL






Bollstanas, Upplands Vasby, Stockholm



Eight semi-detached hillside houses, built with Resaro's ideas.

Resaro's concrete constructions inside the hillside floor.

Under floor heating in both floors, and dynamic air intake for ventilation.

  • PHOTOS FROM THE BUILDING SITE



  • The architect's plans with suggestions for furnishing,
    BOLLSTANAS PLAN GROUND FLOOR
    BOLLSTANAS PLAN TOP FLOOR


  • Exhaust air ventilation Installations inside the top floor


TEXT APPENDIXES

Information about the RESARO system for small houses

Short information about the
"Dynamic fresh air intake"
